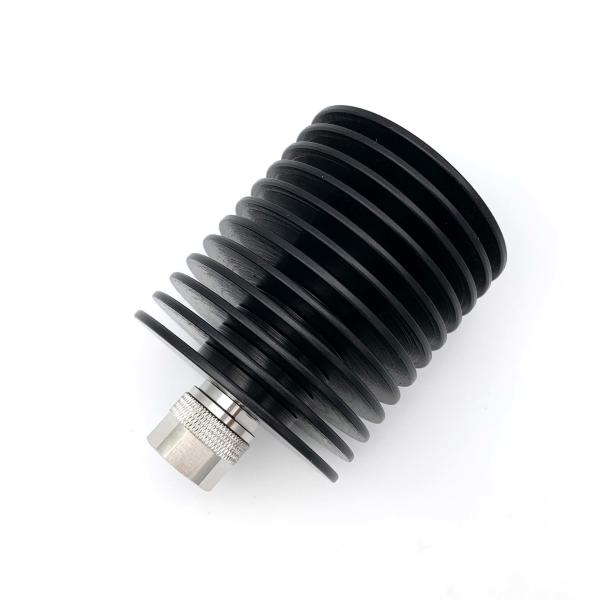

60W DC-18GHz N-Male Coaxial Termination
DC-4GHz, 8GHz,12.4GHz,18GHz are available with N, SMA connector .
Zysen also offer a series Coaxial Termination frequency up to 67GHz
, Power handling from 0.5 to 2000watts,connector SMA,N, 2.92mm or
chip, flange are avaliable. Contact us with your requirement.
- Electrical Specifications
|
| Frequency Range | DC – 6GHz |
| Power | 60W CW@25ºC (when temp. Up to 125ºC, the power reduced to 5W linearly) |
| VSWR | DC-4GHz | 4~8GHz | 8~12.4GHz | 12.4~18GHz |
| 1.20 max | 1.25Max. | 1.35Max | 1.40Max |
| Impedance | 50ohm |
| Connector | N-Male |
| Temperature Range | -55ºC ~ +125ºC |
|
|
| Connector Material | Cu |
| Housing | Aluminum, Black Anodize |
