4GHz 16 Way Power Divider

    Buy cheap 4GHz 16 Way Power Divider from wholesalers

    Buy cheap 4GHz 16 Way Power Divider from wholesalers
    • Buy cheap 4GHz 16 Way Power Divider from wholesalers

    4GHz 16 Way Power Divider

    Ask Lasest Price
    Model Number : ZSPD-0640-16S
    Certification : ISO9001
    Brand Name : Zysen
    Price : Negotiable
    Delivery Time : 2-4 Weeks
    Payment Terms : T/T, L/C,D/A
    • Product Details
    • Company Profile

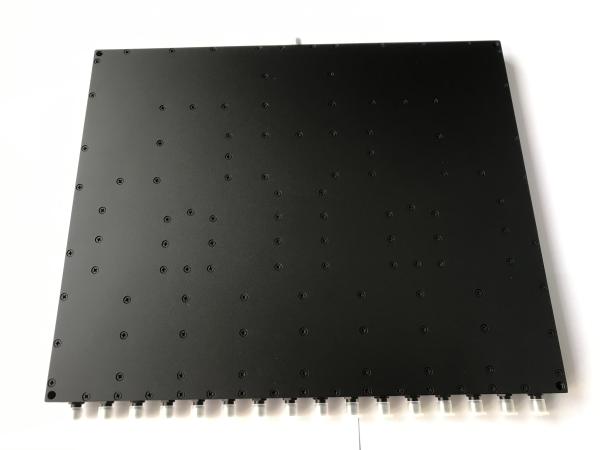

    4GHz 16 Way Power Divider

    0.6 to 4GHz 16-way Power Divider, SMA Connector

    Zysen's 16 ways power dividers, connector with SMA Female, average power 50W, cost effictive, contact with your requirement.


    • Electrical Specifications
    Frequency Range0.6-4.0GHz
    Insertion Loss

    ≤3.2dB

    (Above 12.04dB Split)

    Isolation≥18dB
    Input VSWR≤1.50:1
    Output VSWR≤1.30:1
    Amplitude Balance≤±0.5dB
    Phase Balance≤±8°
    Forward Power≤50Watt
    Reverse Power≤5W
    Impedance50Ω
    RF ConnectorsSMA-Female
    Operating Temperature-40ºC ~ +85ºC
    RoHS ComplianceYes
