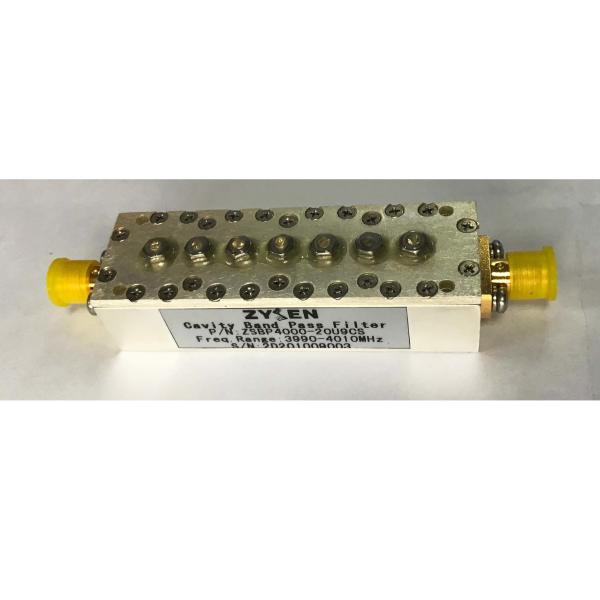

1.5dB 10W RF Cavity Filter 4010MHz Cavity Band Pass Filter

3990 To 4010MHz Cavity Band Pass Filter

Cavity Band Pass Filter & Band Stop Filter, High “Q” design for Narrow BW, Low insertion loss and High rejection. From 200MHz to 40GHz, Connector SMA, N, 2 92mm or Drop-in are avaliable. Power handling from 05 to 2000Watts. Customized frequency and optimized specifications available, Contact us with your requirement.

Electrical Specifications
Center Frequency(f0)	4.0GHz
Pass Band	3.99~4.01GHz
Insertion Loss	≤1.5dB
Passband Ripple	≤1.2dB
VSWR	≤1.5:1
Stop Band Rejection	≥40dB @ DC-3.85GHz ≥40dB @ 4.15~8GHz
Impedance	50 ohms
Power Handling	10W CW
Connectors	SMA-Female
Operating Temperature	-30ºC ~ +70ºC
Storage Temperature	-55ºC ~ +85ºC
