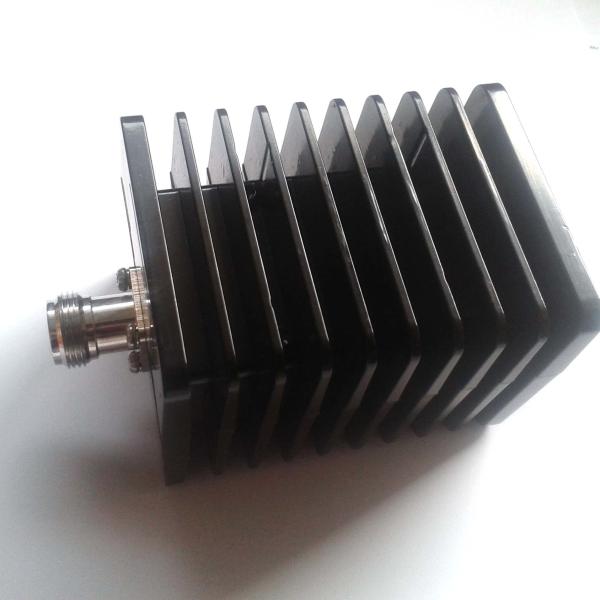

DC 12.4GHz Microwave Fixed Attenuator 50ohm Coaxial Line Fixed Attenuator

Ask Lasest Price
Model Number :	ZSJXX-50SN-xT
Brand Name :	Zysen
Delivery Time :	2-4 Weeks
Price :	Negotiable
Payment Terms :	T/T, L/C,D/A
Certification :	ISO9001

Add to Cart

Product Details
Company Profile

DC 12.4GHz Microwave Fixed Attenuator 50ohm Coaxial Line Fixed Attenuator

DC-18GHz,DC-12.4,DC-6GHz,DC-3GHz 50Watts Fixed Attenuator

Zysen's 50W attenuators available with DC-3GHz, DC-6GHz, DC-12.4GHz, DC-18GHz, 50 impedance & SMA, N Female/Male connectors. Available with 1, 3, 6, 10, 20 , 30dB&40dB to 50dB attenutation.

Electrical Specifications
Frequency Range	DC – 6GHz
Power	50W CW @ 25~70ºC
Attenuation	1~10dB	20dB	30dB	40dB	50~60dB
Attenuation Accuracy	±0.8dB max	±0.9dB max	±1.1dB max	±1.2dB max	±1.3dB max
VSWR	1.20 max @ DC-4GHz 1.25 max @ 4-8GHz,
Impedance	50ohm
Input Connector	N-Male
Output Connector	N-Female
Temperature Range	-55ºC ~ +125ºC

Mechanical Specification (for reference)
Connector Material	Cu
Housing	Aluminum, Black Anodize
