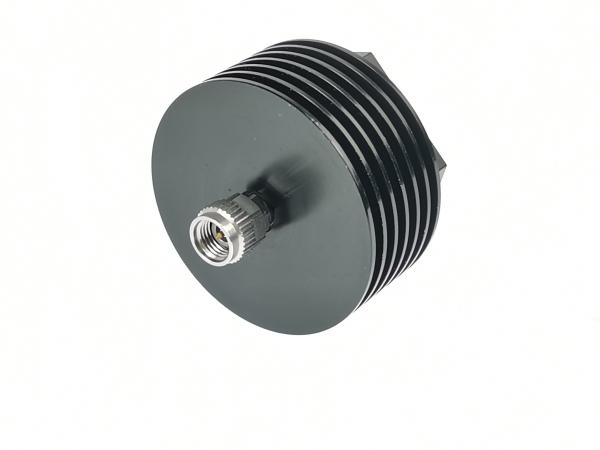

10 Watt Microwave Fixed Attenuator 2.92mm Black Anodize 1db

DC-40GHz 10Watt Fixed Attenuator

Zysen's 5W Wideband (DC-40 GHz) mmWave attenuators available with 50 impedance & K type 2.92mm Female/Male connectors. Available with 1, 3, 6, 10, 20 , 30dB&40dB to 80dB attenutation.

Electrical Specifications
Frequency Range	DC – 40GHz
Attenuation	1~80dB
Power	10W CW at 25°C (Derated linearly to 1W at 100°C)
Impedance	50ohm
Connector	2.92mm-Male/Female

Model No.	Attenuation & Accuracy(dB)				VSWR(:1) Return Loss(dB)
Model No.	1~3	4~8	9~25	26~40	VSWR(:1) Return Loss(dB)
ZSJXX-10RKA-40C	-0.8/+1.2	-0.8/+1.2	-1.0/+1.0	-1.0/+1.2	＜1.38(-15.9)
ZSJXX-10RKA-40B	-0.7/+1.0	-0.7/+1.0	-0.8/+0.8	-0.9/+1.0	＜1.26(-18.8)
ZSJXX-10RKA-40A	-0.6/+0.9	-0.6/+0.9	-0.7/+0.7	-0.8/+0.8	＜1.18(-21.7)
ZSJXX-10RKA-40S	-0.5/+0.8	-0.5/+0.8	-0.6/+0.6	-0.7/+0.7	＜1.12(-24.9)

Model No.	Attenuation & Accuracy(dB)				VSWR(:1) Return Loss(dB)
Model No.	41~50	51~60	61~70	71~80	VSWR(:1) Return Loss(dB)
ZSJXX-10RKB-40C	-1.0/+1.2	-1.0/+1.2	-1.0/+1.5	-1.0/+1.8	＜1.38(-15.9)
ZSJXX-10RKB-40B	-1.0/+1.0	-1.0/+1.0	-1.0/+1.2	-1.0/+1.5	＜1.26(-18.8)
ZSJXX-10RKB-40A	-0.8/+1.0	-0.8/+1.0	-0.8/+1.2	-0.8/+1.5	＜1.18(-21.7)
ZSJXX-10RKB-40S	-0.8/+0.8	-0.8/+0.8	-0.8/+1.0	-0.8/+1.2	＜1.12(-24.9)

xx=attenuation

Mechanical Specification
Connectors	Brass Gold Plated or Stainless Steel
Male Pin Female Pin	Brass Gold Plated Beryllium Copper Gold Plated
Housing	Aluminum, Black Anodize
Operating Temperature	-55°C ~ +100°C
Storage Temperature	-55°C ~ +125°C
