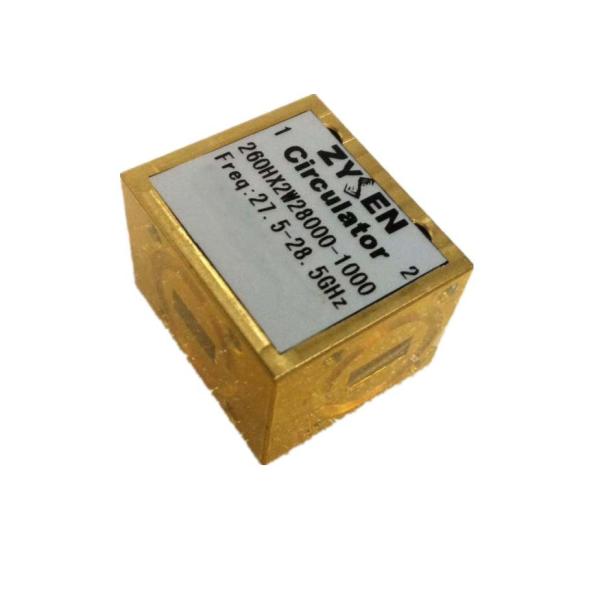

WR34 27.5 to 28.5GHz Waveguide Circulator

Ask Lasest Price
Model Number :	260HX2W28000-1000
Brand Name :	Zysen
Delivery Time :	2-4 Weeks
Price :	Negotiable
Payment Terms :	T/T, L/C,D/A
Certification :	ISO9001

Add to Cart

Product Details
Company Profile

WR34 27.5 to 28.5GHz Waveguide Circulator

WR34 27.5 to 28.5GHz Waveguide Circulator

Bandwidth is customized according to customer's application. Contact us with your requirement.

Black paint, or others colour is ok. flange is compatible with EIA Standard and IEC Standard, check with details with us.

P/N	Freq.Range* (GHz)	Band Width (MHz)	I. L. (dB) max	Isolation (dB)	VSWR max	Average Power* (W)	WG Size	Flange Type
650HX20W	1.12-1.70	200	0.3	20	1.20	20	WR650	FDP14/FDM14
510HX20W	1.45-2.20	200	0.3	20	1.20	20	WR510	FDP18/FDM18
430HX20W	1.70-2.60	250	0.3	20	1.20	20	WR430	FDP22/FDM22
430HX200W	2.20-2.55	200	0.3	20	1.20	200	WR430	FDP22/FDM22
340HX20W	2.20-3.30	250	0.3	20	1.20	20	WR340	FDP26/FDM26
284HX20W	2.60-3.95	300	0.3	20	1.20	20	WR284	FDP32/FDM32
284X200W	2.80-3.40	300	0.3	20	1.20	200	WR284	FDP32/FDM32
229HX20W	3.30-4.90	300	0.3	20	1.20	20	WR229	FDP40/FDM40
187HX20W	3.95-5.85	500	0.3	20	1.20	20	WR187	FDP48/FDM48
159HX20W	4.90-7.05	600	0.3	20	1.20	20	WR159	FDP58/FDM58
137HX20W	5.85-8.20	700	0.3	20	1.20	20	WR137	FDP70/FDM70
137HX100W	5.85-7.20	700	0.3	20	1.20	100	WR137	FDP70/FDM70
112HX20W	7.05-10.0	700	0.3	20	1.20	20	WR112	FBP84/FBM84
90HX20W	8.20-12.4	800	0.3	20	1.20	20	WR90	FBP100/FBM100
90X200W/9499	9.40-9.90	500	0.35	23	1.15	200	WR90	FBP100
90HX2W/935985	9.35-9.85	500	0.3	20	1.20	2	WR90	FBP100
900HX10W/8999	8.90-9.90	1000	0.3	20	1.20	10	WR90	FBP100
75HX20W	10.0-15.0	1000	0.3	20	1.20	20	WR75	FBP120/FBM120
62HX10W	12.4-18.0	1000	0.3	20	1.20	10	WR62	FBP140/FBM140
51HX10W	15.0-22.0	1000	0.3	20	1.20	10	WR51	FBP180/FBM180
42HX10W	18.0-26.5	2000	0.3	20	1.20	10	WR42	FBP220/FBM220
34HX10W	22.0-33.0	2000	0.3	20	1.20	10	WR34	FBP260/FBM260
28HX10W	26.5-40.0	2000	0.3	20	1.20	10	WR28	FBP320/FBM320
