    500W Waveguide Components High Power WR75 Waveguide Termination Load

    Ask Lasest Price
    Model Number : 75HPL-500
    Brand Name : Zysen
    Delivery Time : 2-4 Weeks
    Price : Negotiable
    Payment Terms : T/T, L/C,D/A
    Certification : ISO9001
    • Product Details
    • Company Profile

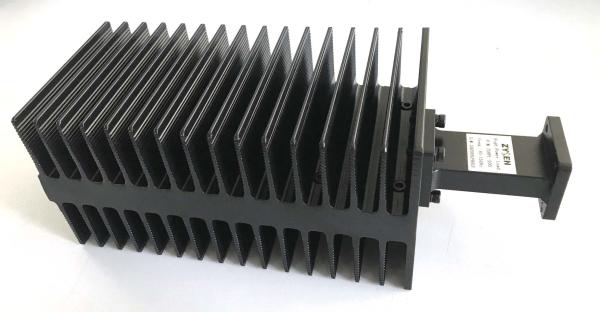

    500W Waveguide Components High Power WR75 Waveguide Termination Load


    WR75 500W High Power Waveguide Load

    Zysen s Waveguide High Power Load, from WR28 to WR975, from 100 to 5000W. VSWR 1.25Max. Custom frequency bands and optimized specifications available. Contact us with your requirement. Standard black paint, others colour is available. flange is compatible with EIA Standard and IEC Standard, check details with us.


    P/NWG Size

    Frequency Range

    (GHz)

    Power
    Handling
    (W)
    VSWRFlange Type
    975HPL-XXWR9750.75-1.12100-50001.25FDP9
    770HPL-XXWR7700.96-1.45100-50001.25FDP12
    650HPL-XXWR6501.12-1.70100-50001.25FDP14/FDM14
    510HPL-XXWR5101.45-2.20100-50001.25FDP18/FDM18
    430HPL-XXWR4301.70-2.60100-50001.25FDP22/FDM22
    340HPL-XXWR3402.20-3.30100-50001.25FDP26/FDM26
    284HPL-XXWR2842.60-3.95100-40001.25FDP32/FDM32
    229HPL-XXWR2293.30-4.90100-40001.25FDP40/FDM40
    187HPL-XXWR1873.95-5.85100-40001.25FDP48/FDM48
    159HPL-XXWR1594.90-7.05100-40001.25FDP58/FDM58
    137HPL-XXWR1375.85-8.20100-40001.25FDP70/FDM70
    112HPL-XXWR1127.05-10.0100-30001.25FBP84/FBM84/FBE84
    90HPL-XXWR908.20-12.4100-30001.25FBP100/FBM100/FBE100
    75HPL-XXWR7510.0-15.0100-30001.25FBP120/FBM120/FBE120
    62HPL-XXWR6212.4-18.0100-10001.25FBP140/FBM140/FBE140
    51HPL-XXWR5115.0-22.0100-10001.25FBP180/FBM180/FBE180
    42HPL-XXWR4218.0-26.5100-6001.25FBP220/FBM220/FBE220
    34HPL-XXWR3422.0-33.0100-6001.25FBP260/FBM260/FBE260
    28HPL-XXWR2826.5-40.0100-6001.25FBP320/FBM320/FBE320
    15HPL-XXWR15

    50.0-75.0

    100-6001.25

    FUGP620

    Ordering InformationWRModel-Power
    Example part number:112HPL-100
    WG Size:WR28 to WR975
    Power in W :

    Example P/N:

    112HPL-100 is the WR112 Load with 100W Power

    Chengdu Zysen Technology Co., Ltd. (Zysen) is a valued manufacturer of high performance RF Microwave Components and related services. With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
    With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
    We have professional technician team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to offer you good services!
    Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
    The entire Zysen staff is willing to go the extra mile to satisfy our customers’ needs , besides the standard products offered, we also do customization. Even you only need one piece, you will still receive warm and professional treatment. Quotes will reply your inquiry within 48 hours. We excel in providing made-to-order, one-of-a-kind and hard-to-find products.
    With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.

    Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
