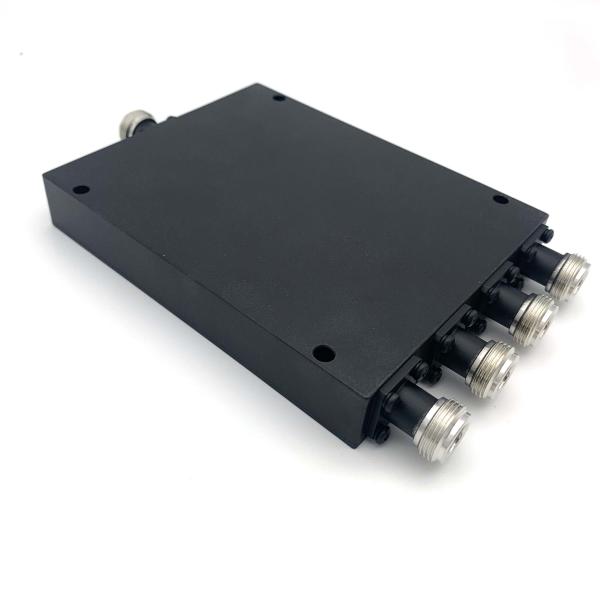

0.7GHz to 6GHz 4 Way Microwave Power Divider N Female Connector

    Buy cheap 0.7GHz to 6GHz 4 Way Microwave Power Divider N Female Connector from wholesalers

    Buy cheap 0.7GHz to 6GHz 4 Way Microwave Power Divider N Female Connector from wholesalers
    • Buy cheap 0.7GHz to 6GHz 4 Way Microwave Power Divider N Female Connector from wholesalers

    0.7GHz to 6GHz 4 Way Microwave Power Divider N Female Connector

    Ask Lasest Price
    Model Number : ZSPD-0760-4N
    Certification : ISO9001
    Brand Name : Zysen
    Price : Negotiable
    Delivery Time : 2-4 Weeks
    Payment Terms : T/T, L/C,D/A
    • Product Details
    • Company Profile

    0.7GHz to 6GHz 4 Way Microwave Power Divider N Female Connector

    0.7-6.0GHz 4-way Power Divider/Splitter

    Zysen's 4 ways wideband power divider, cover 0.7 to 6.0 GHz, connector with N, average power 30W, cost effective, contact with your requirement.


    • Electrical Specifications
    Frequency Range0.7-6.0GHz
    Insertion Loss

    ≤1.3dB

    (Above 6.02dB Split)

    Isolation≥18dB
    Input VSWR≤1.60:1
    Output VSWR≤1.50:1
    Amplitude Balance≤±0.5dB
    Phase Balance≤±5°
    Forward Power≤30W
    Reverse Power≤1W
    Impedance50Ω
    ConnectorsN-Female
    Operating Temperature-40ºC ~ +85ºC
    RoHS ComplianceYes
