2 Way Microwave Power Divider 6-18GHz Power Divider

    Buy cheap 2 Way Microwave Power Divider 6-18GHz Power Divider from wholesalers

    Buy cheap 2 Way Microwave Power Divider 6-18GHz Power Divider from wholesalers
    • Buy cheap 2 Way Microwave Power Divider 6-18GHz Power Divider from wholesalers

    2 Way Microwave Power Divider 6-18GHz Power Divider

    Ask Lasest Price
    Model Number : ZSPD-60180-2S
    Certification : ISO9001
    Brand Name : Zysen
    Price : Negotiable
    Delivery Time : 2-4 Weeks
    Payment Terms : T/T, L/C,D/A
    • Product Details
    • Company Profile

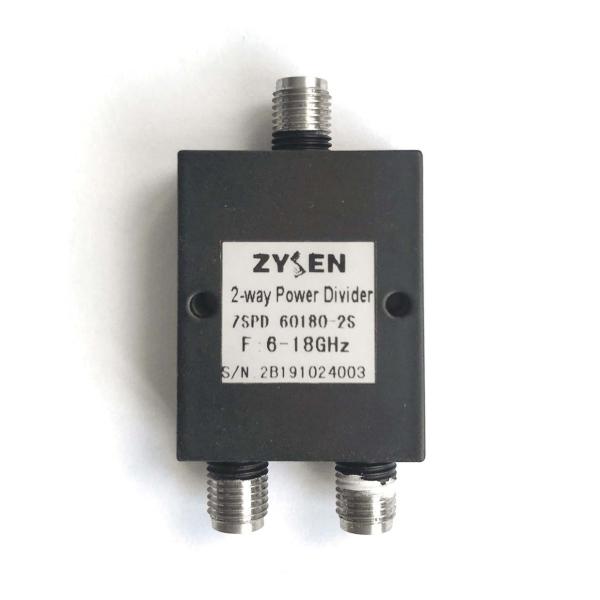

    2 Way Microwave Power Divider 6-18GHz Power Divider

    6-18GHz 2-way Power Divider/Splitter

    Zysen's 2 ways wideband power divider, cover 6 to 18GHz, connector avaliable with SMA and N, average power 30W, cost effective, contact with your requirement.


    Frequency Range6.0 – 18.0GHz
    Insertion Loss0.7dB max
    Isolation18dB min
    VSWR1.45 max
    Amplitude Balance±0.3dB max
    Phase Balance±4º max
    Power Handling30W
    Impedance50ohm
    RF ConnectorsSMA-Female
    Operating Temperature-40ºC ~ +70ºC
    Storage Temperature-55ºC ~ +85ºC

    Chengdu Zysen Technology Co., Ltd. (Zysen) is a valued manufacturer of high performance RF Microwave Components and related services. With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
    With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.
    We have professional technician team all in this area more than 10 years, welcome customers from all over the world visit our website, and inform us if you have any needs, we are looking forward to offer you good services!
    Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
    The entire Zysen staff is willing to go the extra mile to satisfy our customers’ needs , besides the standard products offered, we also do customization. Even you only need one piece, you will still receive warm and professional treatment. Quotes will reply your inquiry within 48 hours. We excel in providing made-to-order, one-of-a-kind and hard-to-find products.
    With over ten years of proven performance, Zysen manufactures a very broad range of RF and Microwave products. Our product range includes standard off-the-shelf catalog items, but primarily custom designed products for special customer requirements.

    Zysen focuses primarily on high performance products and maintains a stringent quality control process, the products are used in the military, satellite, aerospace and telecommunication industries where performance, reliability and durability matter.
